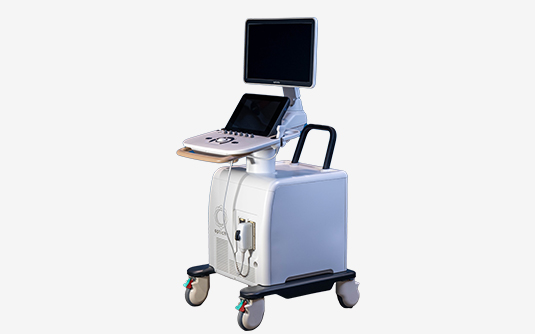

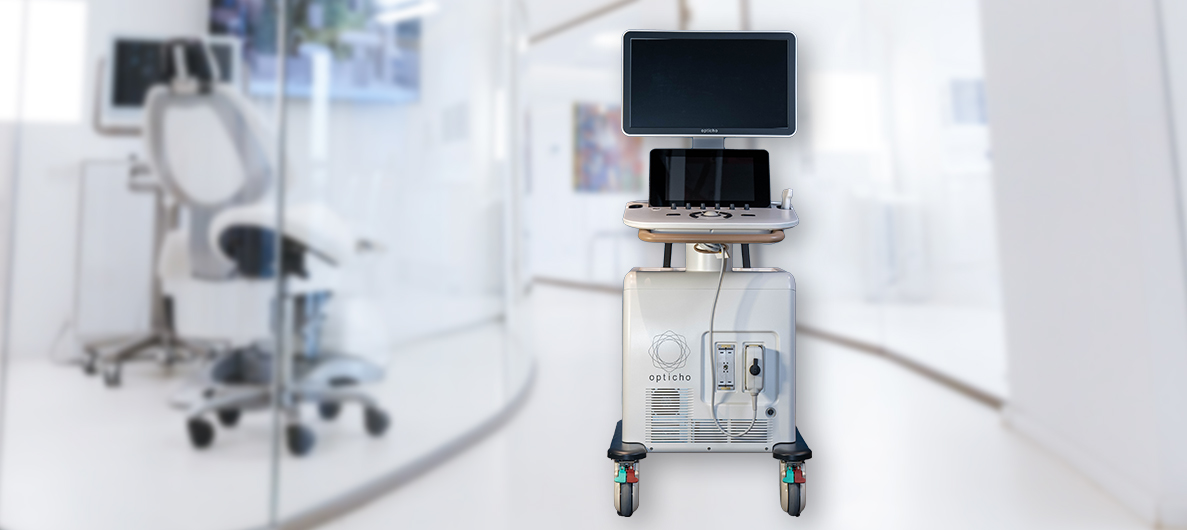

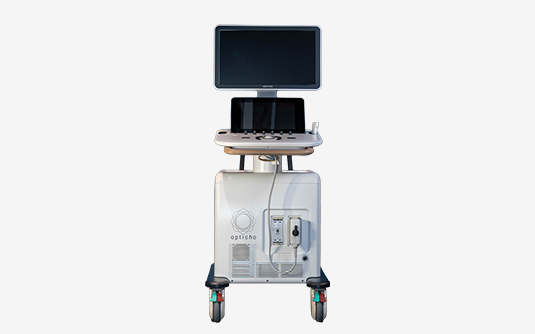

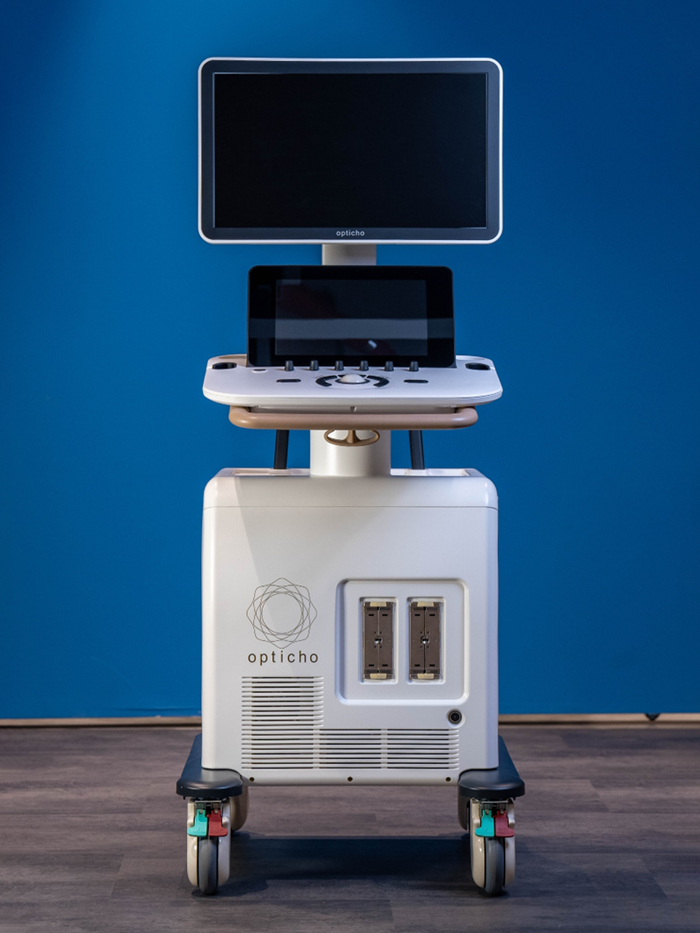

Software-based ultrasound imaging device
OptichoUS brings state-of-the-art ultrasound (US) imaging techniques to real-world clinical settings.
Its appearance is familiar to medical doctors, researchers, developers, and even the general public. The system supports reconfigurable electronics and user-definable image processing algorithms that can be implemented on an embedded graphical processing unit (GPU), allowing users to develop and apply their own imaging methods.
By implementing their own solutions, users can validate the technical feasibility and clinical effectiveness of such advanced ultrasound imaging techniques as ultrafast US, Doppler imaging, US localization microscopy, and energy-based imaging modalities, including photoacoustic imaging, RF acoustic imaging, and X-ray acoustic imaging.
For these custom implementations, we can provide engineering services such as integrating custom-designed US probes, accelerating image processing, and R&D collaboration.
Research for leading-edge US imaging
Advanced US imaging development
Tumor progression and regression monitoring
US image processing improvement
Pre-clinical and clinical studies
Nondestructive evaluation
R&D for medical and industrial devices

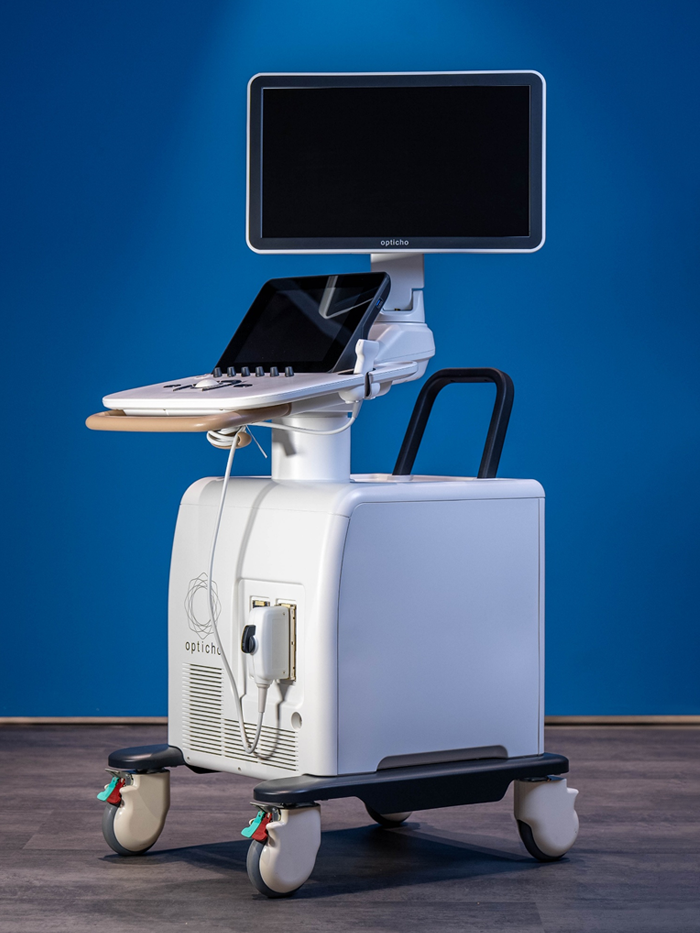

Resembles familiar medical US imaging devices

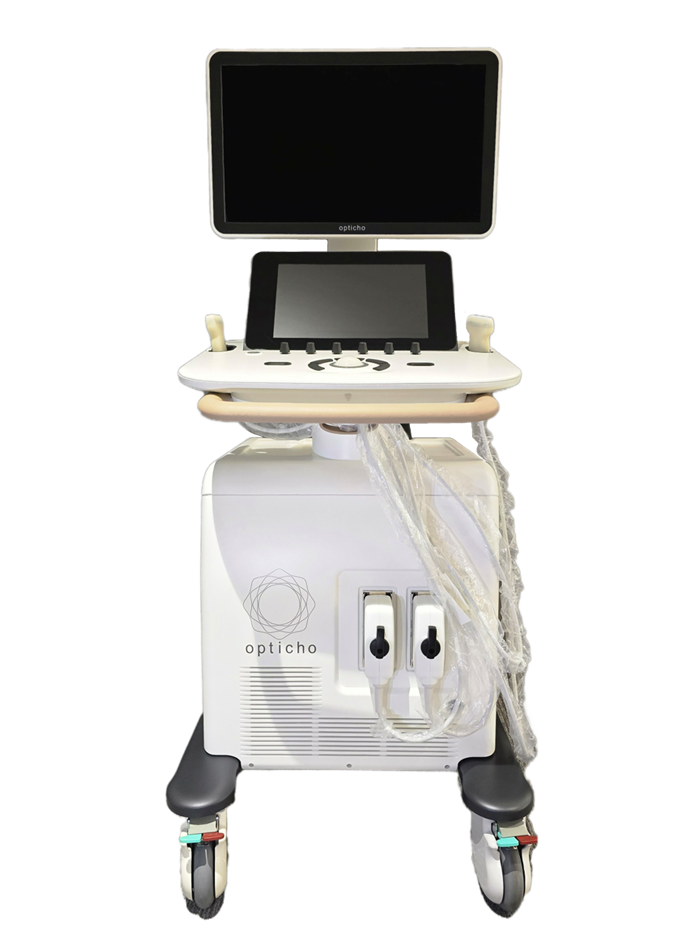

Dual US probe ports with shutters

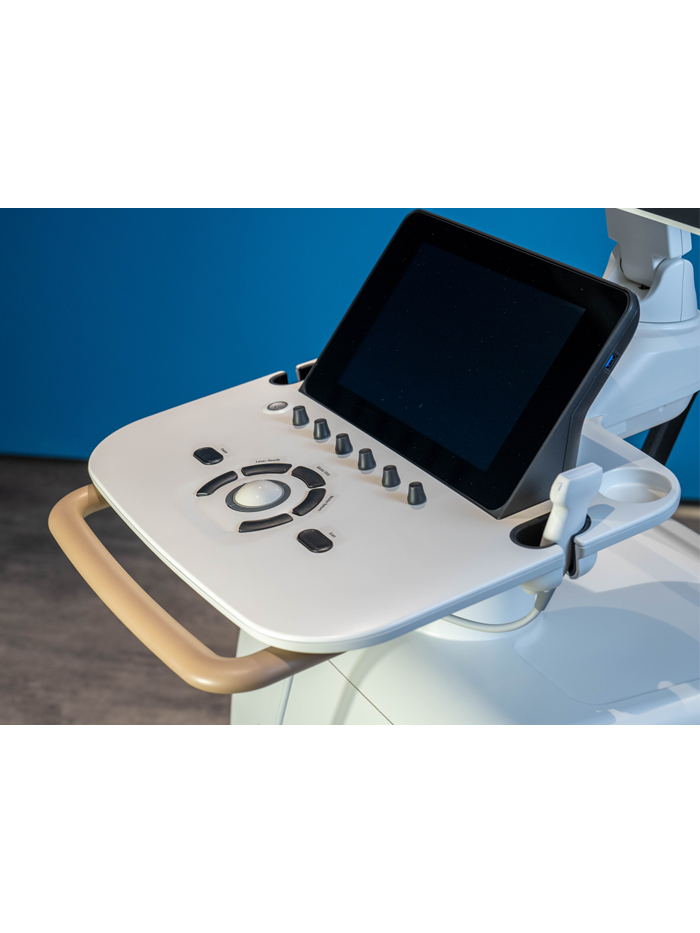

User interface with touchscreen, trackball, switches, buttons
Configurable US analog front end
Direct access to US raw data with high-speed transfer via PCIe interface.
Easy user-defined postprocessing, accelerated by GPU
Synchronization with trigger input/output ports
Mobility via 4 casters and front/rear handles

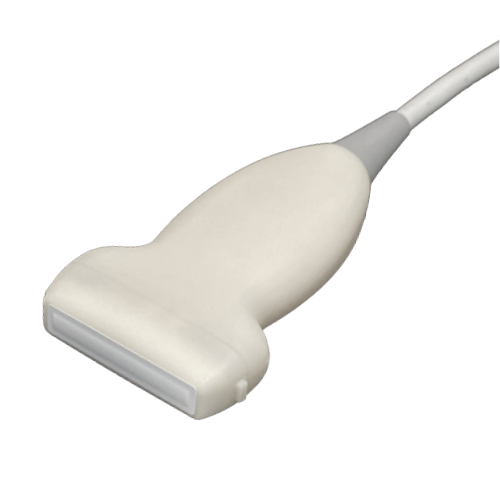

Linear

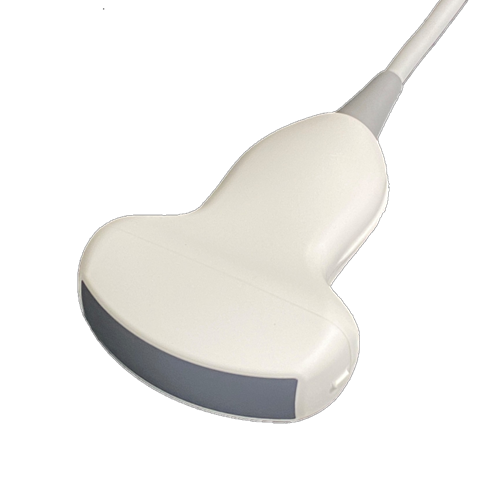

Convex

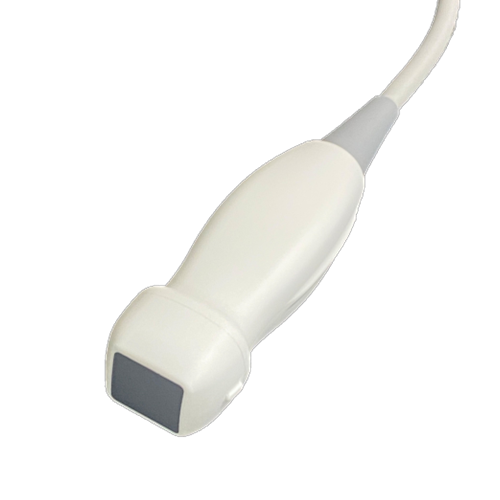

Phased

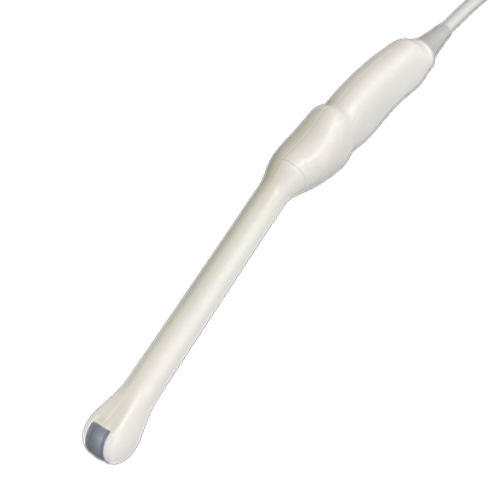

Endocavity

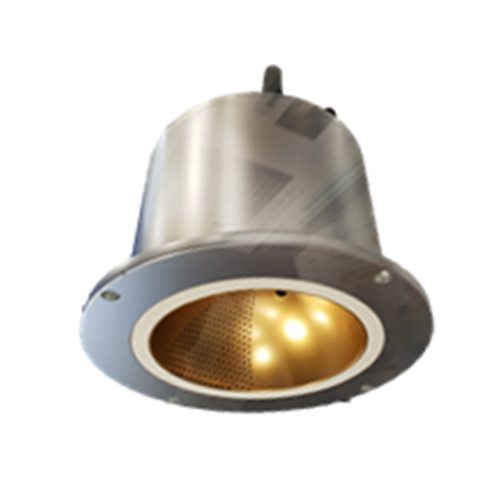

Hemispherical
| Probe | Number of channels | 128 |
|---|---|---|
| Number of connectors | 2 | |
| Number of elements per connector | 256 | |
| Transmission (Tx) |
Frequency | 2 to 20 MHz |
| Pulse voltage (HV) | ±10 to ±80 V | |
| Pulse waveform | 3-level (-HV, 0, +HV) | |
| Reception (Rx) |
Sampling frequency | 20 to 60 MHz |
| Memory (per channel) | 100 MB | |
| Data transfer interface | 8-lane PCIe 3.0 | |
| Synchronization | Number of trigger input ports | 2 |
| Number of trigger output ports | 1 |
| Image | * white lens available |
|
|
|
|
|---|---|---|---|---|---|
| Type | Linear | Convex | Phased | Endocavity | Hemispherical |
| Elements | 128/192 | 128 | 64 | 128 | 512 |
| Frequency | 8 MHz | 3.5 MHz | 3.2 MHz | 6.5 MHz | 3 MHz |
| Pitch | 0.3/0.2 mm | 0.48 mm | 0.24 mm | 0.21 mm | - |
| Curvature | - | 60 mm | - | 10 mm | 40 mm |
| Focus | 18 mm | 80 mm | 80 mm | 30 mm | - |
